Anakonda-KAN200+
K-array's passive line-array installation loudspeaker, placing sixteen 1-inch drivers in a flexible 2m body that can follow architectural forms.
- Drivers
- 16 × 1in neodymium drivers
- Nominal coverage
- 140° horizontal × 10° vertical
Technology
Line Arrays
Loudspeaker Journal products and reporting related to Line Arrays.
Products
T10
PK Sound's robotic line-source module, integrating dual 10in LF, dual 6.5in MF, a dual-diaphragm HF and 3,000W amplification with remotely adjustable 60–120° horizontal and 0–12° vertical coverage.
- Drivers
- LF: 2 × 10in neodymium bandpass-loaded; MF: 2 × 6.5in; HF: 4in dual-diaphragm planar-wave driver
- Maximum SPL
- 146dB at 1m with crest-factor-4 pink noise and limiter/DSP active

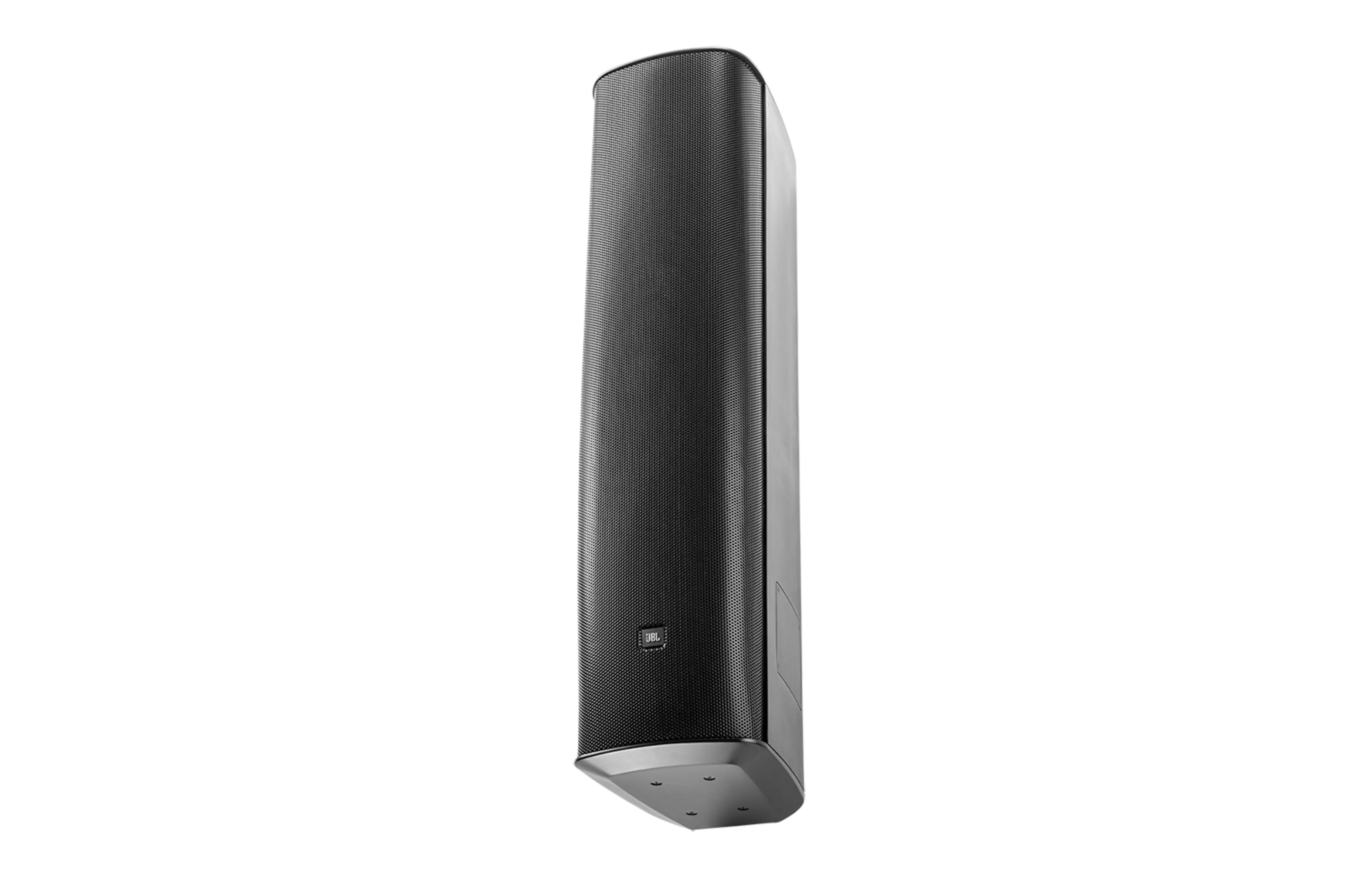

CBT 1000
JBL Professional's passive installation column, combining six 165mm LF and twenty-four 25mm HF drivers with sixteen vertical patterns and 100–160° tapered horizontal coverage without external DSP.
- Drivers
- LF: 6 × 165mm high-excursion cones; HF: 24 × 25mm high-power soft domes
- Frequency range
- 45Hz–20kHz (-10dB)

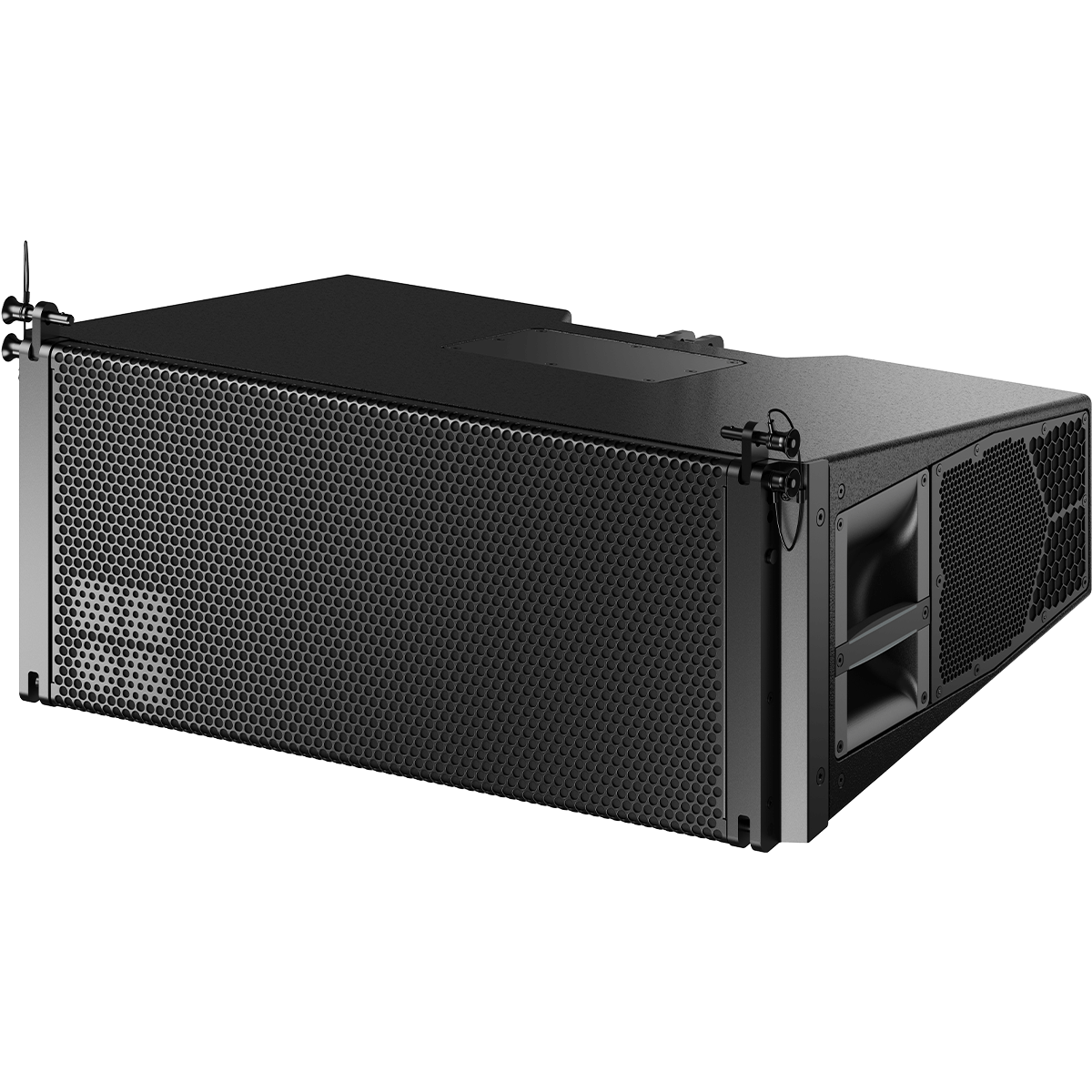

XSL8
d&b audiotechnik's three-way line array, using two front and two side LF drivers, a horn-loaded MF and dual HF compression drivers to provide 80° horizontal directivity from low frequencies upward.
- Drivers
- LF: 2 × 8in front + 2 × 6.5in side; MF: 6.5in horn-loaded; HF: 2 × 1in-exit compression drivers with 2in voice coils
- Maximum SPL
- 141dB with D40/D80/D90/40D at 1m in free field
L2
L-Acoustics' progressive line source integrating four fixed-angle modules, 16-channel drive, switchable Panflex horizontal directivity and cardioid low-frequency control.
- Drivers
- LC: 4 × 12in neodymium cones; LF: 8 × 10in neodymium cones; HF: 8 × 3in neodymium compression drivers
- Nominal coverage
- Horizontal: 70° / asymmetric 90° / 110°; vertical: 10° progressive
